AquaAir® provides ponds and lakes with superior
aeration, circulation, and
de-stratification.
Dissolved oxygen
(DO)
levels
are increased
throughout the
entire
water
column with the
use of
bottom-mounted
diffusers. The diffusers
employ a
super fine
micro-bubble
technology resulting
in the
highest
diffuser oxygen transfer
rate
(OTR)
available today. The micro-bubbles
draw
water from the pond floor to the surface
where atmospheric oxygen is absorbed
and
then transferred throughout the
water
column.
This process
provides excellent
deterrence
to thermal
stratification (layers of
different
temperature within the water). The diffusers

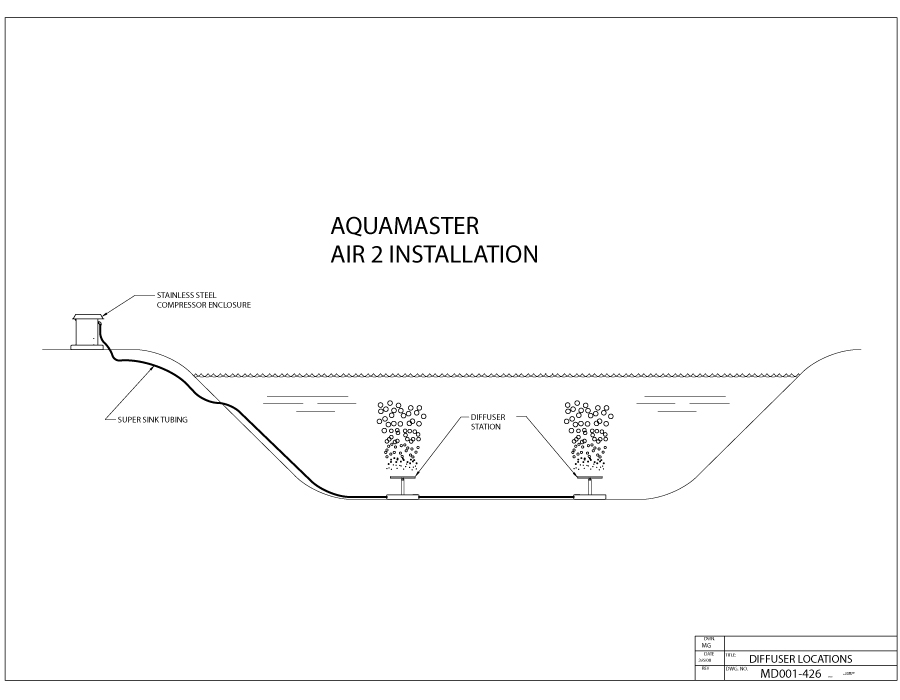

are connected by self-weighted Super
Sink
air supply tubing to a revolutionary
cylindrical design enclosure containing one of

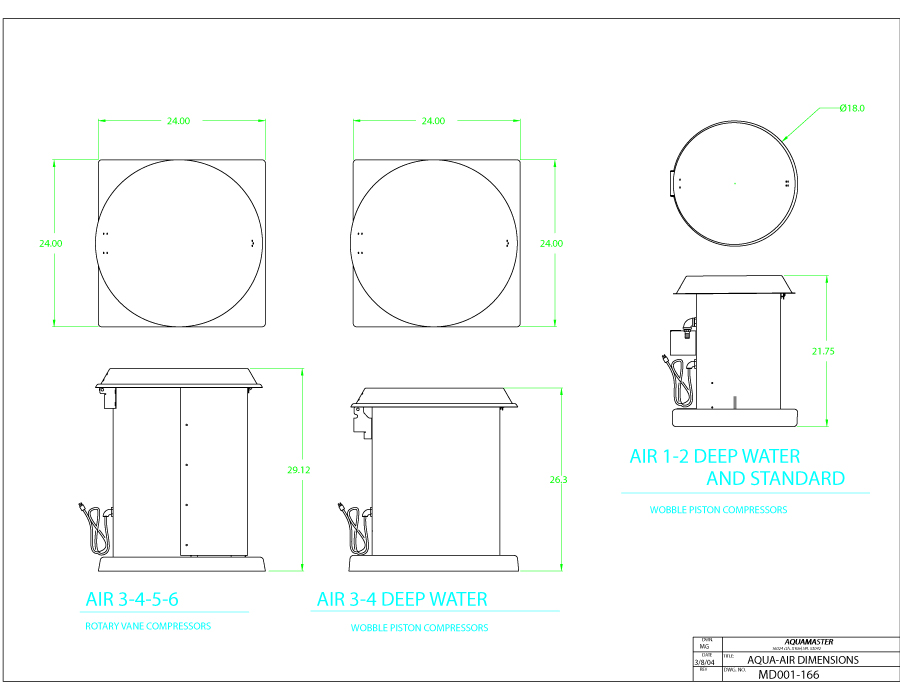

four compressor sizes. System sizes range
from
1/3 to 1 HP and operate with one to six diffusers.
CAD - SPECS - DETAILS
DEEP
WATER
SERIES
